FEVE fluorocarbon paint

The fluorocarbon coating developed by the company is a new type of thermosetting coating for precoated coil based on Japanese Daikin's polytetrafluoroethylene as the main film forming substance. It is far more than other film forming substances in the coating weather resistance, hardness, stain resistance, acid and alkali resistance, which is the king of modern outdoor building decoration materials; The excellent performance of FEVE fluorocarbon coating is due to the special chemical structure of the product. Due to the strong bond energy of carbon-fluorine bond (485KJ/mol), only a small proportion of ultraviolet light in sunlight (≤220nm ultraviolet wavelength) can destroy C-F bond. The sunlight almost has no effect on the fluoropolymer, so the fluoropolymer has ultra-high weather resistance.

Coating performance test index

Test itemInspection specificationremarks

Coating appearance

Coating surface should be flat, no bubbles, shrinkage and other undesirable phenomena

Visual measurement

fineness

Brightness: 10μm matte 20-25μm

Fineness plate

viscosity

110-130" 25 ℃ /

FD4# Viscosity Cup

Wet film specific gravity

White: 1.2-1.4 Others: 0.9-1.3

100ml specific gravity cup

Solid composition

White: 60±5% Silver: 50±3% Others: 53±3%

105℃×3Hr

luster

Bright light: Matte above 80℃ can be according to the actual requirements of customers

< 60 °

adhesion

1mm×1mm×100/100

Hundred grid method

hardness

≥HB

Mitsubishi pencil

impact

No cracks in 1/2×1000g×50cm

Impact meter

bend

Finish paint ≤2T

Bending meter

Solvent resistance

≥100 times (1kg force)

MEK

Acid and alkali resistance

48HR no abnormal phenomena such as discoloration, foaming and paint removal

5%HCL5%NAOH

Boiling water resistance

99±1℃2Hr no bubbles, paint and other abnormal phenomena

Thermostatic water bath

Salt spray resistance

35℃5%NACL×4000Hr no abnormal phenomenon such as foaming, paint removal

Salt spray tester

Weather resistance

4000HR does not bubble, flake and crack

Weather testing machine

self-cleaning



Graffiti resistance

Oil-based strokes wipe on the film without a trace


FEVE fluorocarbon coating technology

Material: pretreated substrate

Diluent: supporting special diluent

Coating viscosity: 60-90" 25 ℃ /

Film thickness: 28±2μm

Drying conditions (PMT):224℃-241℃×60-90 ";

Two coatings and two baking processes are commonly used

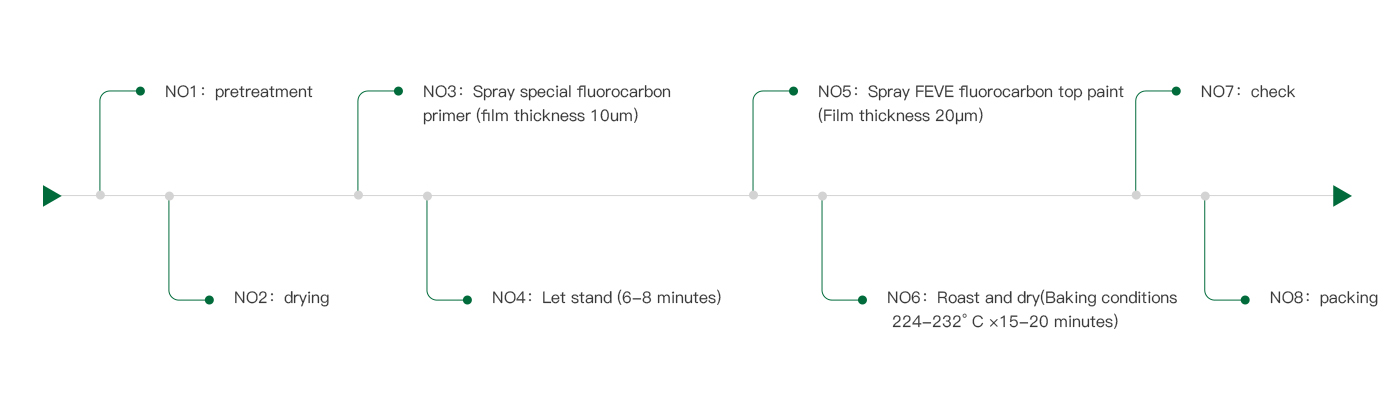

"Two coating and one baking" spraying process
