High solid paint content

High solid coil coating

High solid coating is a new type of energy saving and environmental protection coating developed to meet the needs of modern painting development, especially to comply with environmental protection to reduce VOC  New emission requirements; Our company

Successful research and development; Series of high solid paint, in addition to meet all the requirements of conventional coating aluminum coil, but also has the characteristics of higher film fullness, better gloss stability.   Compared with conventional coatings, the advantages of high solid containing coatings are mainly reflected in two aspects:

1. Due to the factory viscosity remains unchanged (110 seconds /25 degrees), solid content increased by 15%, its unit square coating rate significantly improved, compared with ordinary coating comprehensive increase of 15%-20%, effectively reduce the coating   Cost, enhance the market competitiveness of customers;

2. The volatile solvent of high solid content coating is about 25% lower than that of ordinary coil coating, greatly reducing VOC  Emissions, reduce environmental pollution, but also slow down the environmental pressure faced by enterprises.

Coating performance test index

Test item

Inspection standard

An instrument or method of inspection

Coating appearance

Coating surface should be flat, no bubbles, shrinkage and other undesirable phenomena

Eye   measuring

fineness

Brightness: Matte 20-25μm below 10μm

Fineness plate

viscosity

110-130" 25 ℃ /

FD4# Viscosity Cup

Wet film specific gravity

1.2-1.4

100ml specific gravity cup

Solid composition

70% - 75%.

105℃×3Hr

luster

According to the actual requirements of customers

Glossometer Angle 60°

adhesion

1mm×1mm×100/100

Hundred grid method

hardness

≥2H

Mitsubishi pencil

impact

No cracks at 1/2φ×1000g×50cm

Impact meter

bend

Finish paint ≤2T

Bending meter

Solvent resistance

≥100 times (1kg force)

MEK

Boiling water resistance

99±1℃2Hr no bubbles, paint and other abnormal phenomena

Thermostatic water bath

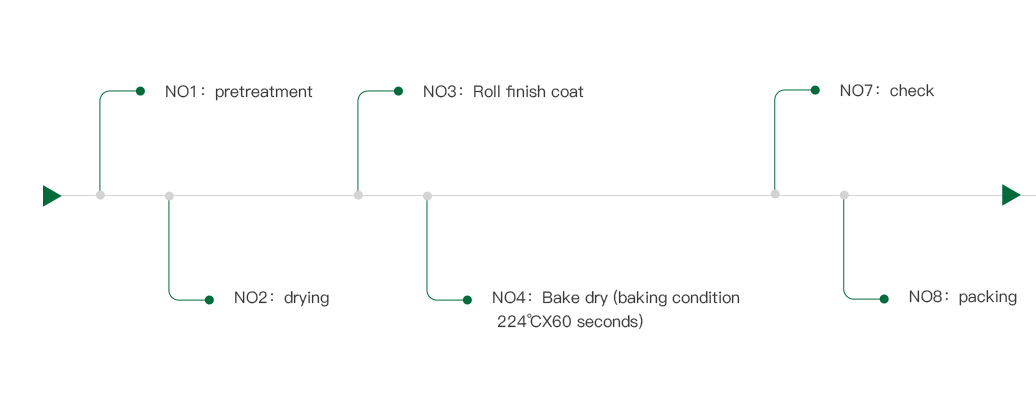

Coating process of high solid content coatings

Complete surface cleaning and pretreatment system for aluminum sheet or steel sheet

Complete roll coating equipment and baking equipment

Perfect product quality control system

Equipped with high solid and low viscosity coating special thinner

"One paint one bake" roll coating process
